How To Install A Rear Bike Rack

How To Install A Rear Bike Rack

There are many ways to install a rear on your bicycle.

Installing rear bike racks onto bicycles with eyelets near the rear hub and eyelets within the seat stay is generally easier.

If your bike doesn’t have any of these eyelets, many bike racks come with additional parts for installation.

You can purchase additional parts to make your work if it is not included.

You can also use p-clamps, a seat post clamp, and a rack mount if you don’t have any seat stay eyelets.

It’s more difficult if you don’t have any eyelets near the rear hub. You will need to purchase an alternative bike rack in this case. I have already mentioned it in a section.

Some bike racks, such as the Axiom Streamliner, have attachments that attach directly to the hub quick-release or locking skewer. This product is suitable for axles.

You can take your bike to your local bicycle shop to find out what you can do with it.

Sale

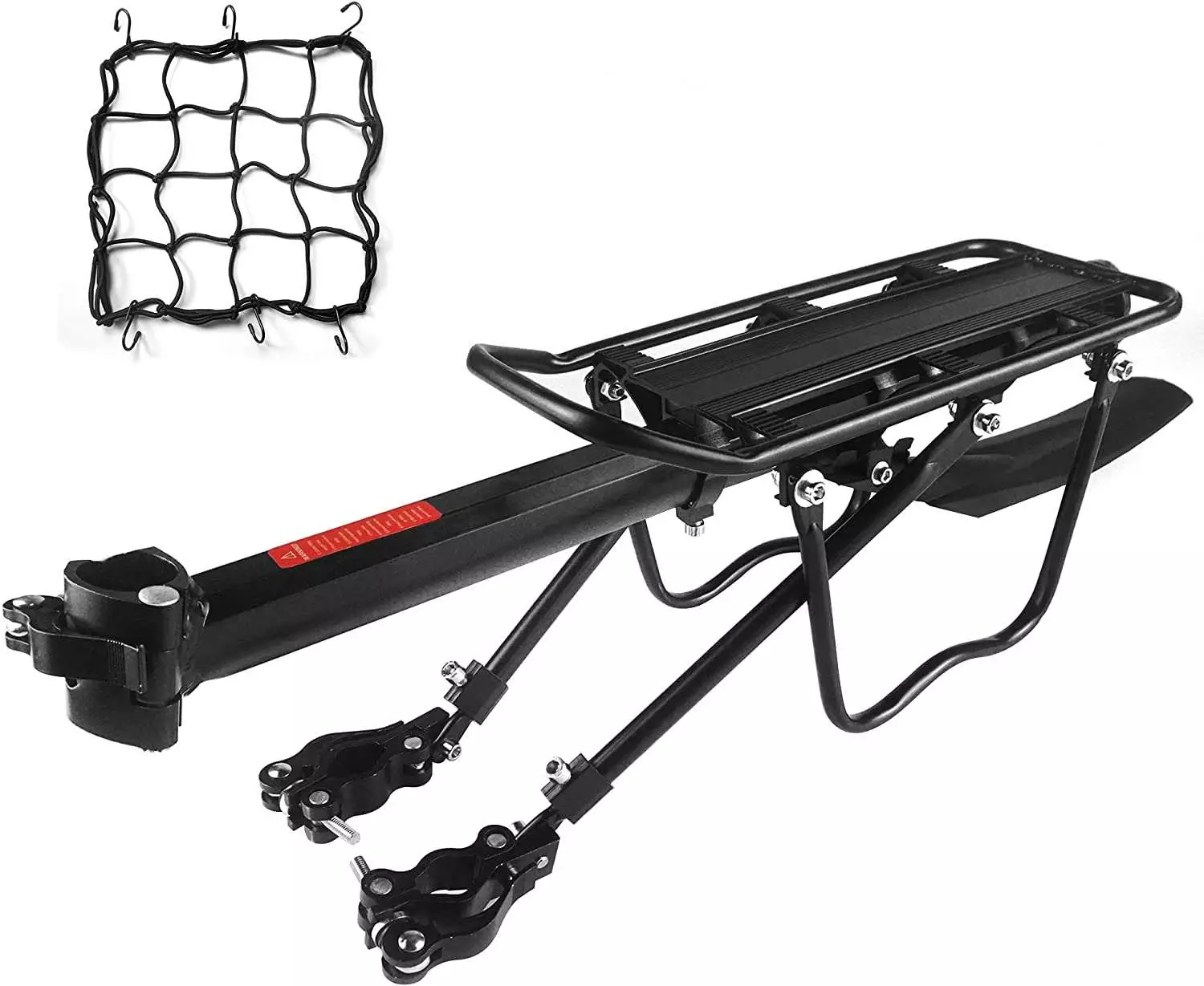

DIRZA Rear Bike Rack Bicycle Cargo Rack Quick Release Adjustable Alloy Bicycle Carrier 115 lbs Capacity Easy to Install Black
  • STURDY:This bike carrier rack is made of durable aluminum alloy,strong and well built bike rack for carrying lots of weight.
  • QUICK RELEASE:Quick release mount at seat post.Easy to install and come with tools and installation instruction.
  • LARGE LOAD:This carrier rack is made of quality aluminum alloy,lightweight,but carries up to 115 lbs
  • W-SHAPED & ADJUSTABLE DESIGN:Design with W-shaped bars to prevent pannier from hitting the tires,keeps your pannier safe.The adjustable shelf and bottom rods,fits 18″-27.5″ mountain bike type and road bike type.
  • NOTE:Does NOT fit Suspension bike,Fat tire bike, Women’s cruiser bike,Bike seat,ect.The included nuts are locking nuts.When you installed the nut,The rubber inside the nut will prevent you from tightening. Just use a tool to tighten nut.

Last update on 2024-03-01 / Affiliate links / Images from Amazon Product Advertising API

 Here is a step-by-step guide on how to install a rear bike rack:

  1. Gather Tools and Materials
    • Rear bike rack compatible with your bike
    • Allen wrenches or hex keys (usually 4mm, 5mm, or 6mm)
    • Adjustable wrench or specific size wrenches for your bike’s bolts
    • Screwdriver, if required by your rack
    • Mounting hardware that comes with the rack (bolts, nuts, washers, etc.)
  2. Read the Instructions
    • Before you start, read through the installation instructions that came with the rack to familiarize yourself with the process and any specific requirements for your model.
  3. Prepare the Bike
    • Position your bike so it’s stable, either in a bike stand or by leaning it against a wall.
    • Clear the area around the rear wheel where the rack will be installed.
  4. Attach Lower Mounting Brackets
    • If your bike has braze-ons (pre-installed attachment points), align the lower part of the rack with these points.
    • If there are no braze-ons, you might need to use clamps provided with the rack to attach it to the frame.
    • Hand-tighten bolts to hold the rack in place temporarily.
  5. Level the Rack
    • Adjust the rack so it’s level. This will ensure that your cargo sits flat and doesn’t slide off while riding.
  6. Attach Upper Mounting Brackets
    • Align the upper part of the rack with the braze-ons near the top of your bike frame or seat stays.
    • If your bike doesn’t have upper braze-ons, you may need to use adjustable arms that connect to the seat post.
    • Hand-tighten these bolts as well.
  7. Secure All Hardware
    • Once everything is aligned and properly positioned, go through each bolt and tighten them securely with the appropriate tool. Do not over-tighten, as this can strip threads or damage components.
    • Ensure that all parts are firmly attached and that the rack has no wobble.
  8. Check Clearance
    • Spin the rear wheel to ensure the rack isn’t touching it or inhibiting its movement in any way.
    • Check that the rack doesn’t interfere with brake cables or any moving parts of the bike.
  9. Test with a Load
    • Place a light load on the rack and take a short test ride to check for stability and any unusual noises or movements.
    • Adjust if necessary, and re-check all bolts for tightness.
  10. Final Inspection
    • Make one last inspection of all components to ensure everything is secure.
    • You are now ready to use your rear bike rack for carrying items on your rides.

Remember that the installation details can vary based on your specific bike and rack model, so use this guide as an outline and refer to your rack’s manual for specific instructions.

Always remember that safety comes first when carrying things on a bicycle – don’t overload it beyond its capacity, as this could affect balance and handling while riding.

How to Install a Rear Bike Rack Tips

Key points:

  • Choose a bike rack that is compatible with your bicycle and suits your needs.
  • Ensure the bike rack is securely attached to the frame of your bike.
  • Follow the manufacturer’s instructions for installation, and use the provided hardware.
  • Please double-check that the bike rack is stable and doesn’t wobble before using it.
  • Test the bike rack with some weight or load to ensure it can handle the desired load capacity.

Now you want to know what type of carrier you can use with it.

A Note about Disc Brakes and Rear Racks

You may often see advertising for rear bike racks that are compatible with disc brakes. This is a confusing area, so I’ll try to clarify.

Bicycles are not manufactured similarly; a disc brake rear rack may not work with your bike.

If the brake mechanism is located directly above the eyelet (next to the rear hub), the disc brakes will usually not interfere with rear rack installation.

You can buy the “normal non-disc brake rack” if your brake mechanism isn’t above the rear hub but on the side or elsewhere.

The disc brake mechanism is located above the frame eyelet. You will need a rack that can hold disc brakes.

A seat post-mounted rack was also used in this instance. This disc-brake bicycle can be used to mount a non-disc brake rear bike rack.

In this instance, the disc brake mechanism is located to the side of the frame eyelets and not above them.

Two empty eyelets are found on this mountain bike. The lower eyelet could have a normal rear rack attached, but the lower eyelet would be required to use the brake mechanism.

Most disc brake-compatible racks have a spacer that extends the connection point above the brake mechanism.

To solve problems with installation, you can buy a spacer from a hardware shop and a longer screw.

Some racks, such as the Axiom streamliner, have feet that push the connection points behind the disc brake mechanism toward your bike’s back without extending the point outward.

Install A Rear Bike Rack Pros and Cons

Pros:

  • Increased Carrying Capacity: A rear bike rack allows you to carry bags, panniers, or other items, making it easier to transport groceries, work supplies, or gear for a trip.
  • Convenience: Having a rack can make commuting and shopping more convenient as you don’t have to carry everything on your back, reducing sweat and strain.
  • Balance and Stability: Rear racks distribute the weight of your cargo more evenly over the center of the bike, which can improve balance and stability compared to carrying a heavy backpack.
  • Versatility: Many rear racks are designed to be compatible with various accessories, such as child seats, different types of panniers, and bungee cords.
  • Protection for Your Back: A rear rack can help prevent muscle strain and improve overall ride comfort by taking the load off your shoulders.

Cons:

  • Increased Weight: Adding a rack to your bike increases its overall weight, which might be noticeable when pedaling uphill or accelerating.
  • Aerodynamics: A rear rack can change the aerodynamics of your bike, potentially making it less efficient, particularly at higher speeds or in windy conditions.
  • Complexity in Installation: Depending on the bike and rack model, installation can sometimes be complex and may require additional tools or hardware.
  • Compatibility Issues: Not all are designed to fit a rear rack, and there may be compatibility issues with disc brakes or certain frame designs.
  • Parking and Storage: A bike with a rear rack may take up more space and could be more challenging to park or store in tight spaces.
Sale
CXWXC Rear Bike Rack – Bike Cargo Rack for Disc Brake/Non-Disc Brake Mount – Bicycle Pannier Rack, Touring Carrier Rack fit 26”-29” and 700c
  • 【PANNIER RACK FOR TOURING】: The rear rack adds a lot of versatility, and is the most popular type of bike rack. Saving your back from carrying heavy loads, rear racks allow you to carry much more cargo on the road with you. Lots of cyclists use our rear racks when they’re bike touring or camping, also make great racks for a commuter looking to carry a pannier on their bike and extra gear to get to school or work
  • 【COMPATIBILITY】: The rear rack is adjustable, allows to fit almost any bicycle. Compatibility with 26″-29″ and 700c wheels, Disc and Non-Disc Brakes. So you can use it on MTBs, touring and even gravel . Heel clearance is excellent even with 3 panniers on the rear rack. One trunk bag up top and pannier on each side
  • 【SOLID & STURDY】: This bike rear rack is constructed with durable 6061-T6 aluminum, the rack maintains stiffness without weighing your frame down. This cargo rack included space to attach a reflector at the rear and designed the rack with a narrow width to keep weight as close to the center as possible for a stable ride. Once you’re packed up, it can carry up to 60 lbs of gear
  • 【MONEY BACK GUARANTEE】: All CXWXC customers enjoy 30 Day Money Back Guarantee. Customers can return and get refunded in case the purchasing is not satisfied for any reason. You have no risk to try. NOTE: After you have used it for a period of time, please check whether the screws in various parts are loose

Last update on 2024-02-29 / Affiliate links / Images from Amazon Product Advertising API

Buying A Panier for a bike rack – what to look for

When purchasing a pannier for a bike rack, consider the following factors to ensure you choose the right one:

  • Compatibility: Make sure the pannier is compatible with your bike rack. Not all panniers fit all racks, so check the product specifications carefully.
  • Capacity: Consider how much you’ll need to carry in your pannier. If you plan on using it for grocery shopping or commuting, you’ll need a larger capacity than if you’re carrying a few small items.
  • Durability: Look for a pannier made from durable materials that can withstand the elements and frequent use.
  • Water Resistance: If biking in wet weather, ensure your pannier is water-resistant or waterproof.
  • Ease of Use: It is easy to attach and remove the pannier from your bike rack. Some have simple hook and strap systems, while others may be more complicated.
  • Security: If you leave your bike unattended, choose a pannier with some security feature, like a lock or an attachment that’s difficult to remove without tools.
  • Visibility: Reflective elements or bright colors can help increase your visibility on the road, which is particularly important if you’ll be biking in low-light conditions.
  • Price: Of course, you’ll also want to consider your budget. Remember that while more expensive panniers often offer more features and higher-quality materials, many affordable options are available that still offer good performance.

Ensure enough space between your pedal and a pannier or side basket. This is usually not a problem with most bikes, but it could be worth considering if you have a special or small road bike.

This is where the Axiom streamliner comes in, pushing your connection point further back with its feet.

Different sizes are available for rear racks’ side rails, where you would connect panniers. Most panniers will fit the standard size, although many panniers have inserts that can accommodate different sizes.

Happy cycling!
